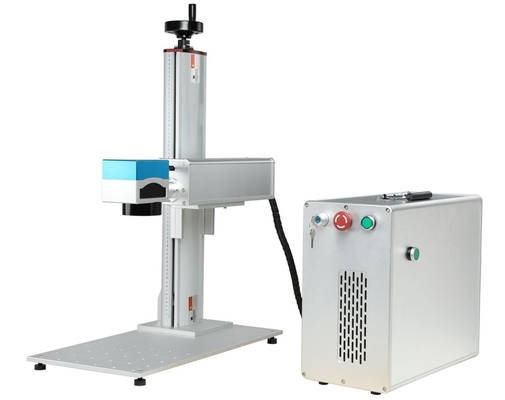

Laser Marking Portable 20W Fiber Laser Marker Machine For Industrial Use

Specification:

Model: MRJ-FL-20C
Laser power: 20W
Laser Wavelength: 1064nm
Beam Quality: M2<1.6
Repetition Frequency: 20-80KHz
Marking Field 50*50mm,75*75mm,110*110mm,175*175mm, 200*200mm, 300*300mm(based on your needs)
Marking Depth: ≤1.2mm
Marking Line Speed: ≤14000mm/s
Min. Line Width: 10um
Min. Character: 0.15mm
Repetition Precision: ±0.001mm
Power Consumption: ≤600w
Maintenance-free Time: 100,000hours
Input power: Single phase 110V/220v/50-60Hz
Cooling method:  Air cooling
Marking Format: Graphics,Text,Bar Codes,Two-dimensional Code,Automatically Marking theDate,Batch Number,Serial Number,Frequency,etc.
Graphic Format: Supported bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.

Compaison Between MRJ Laser engraver with others:

Application Industry:

Electronic Components : Resistance, capacitance, chips, printed circuit boards, computer keyboard.
Apparatus And Meter: Panel signs, precision equipment, etc.
Instrument: Panel signs nameplates, precision equipment, etc.
Hardware Tools: Knives, tools, measuring tool, cutting tool, etc.
Automobile Parts: Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.
Mechanical Parts: Bearings, gears, standard parts, motors, etc.
Daily Necessities: Handicrafts, zipper, key holder, sanitary ware, etc.
Jewelry: Rings Jewelry, gold, silver, etc.
Food package: Plastic packages, etc.

Marking Material:
Metals:Carbon steel/mild steel, stainless steel, aluminum, copper, magnesium, zinc,rare metal and alloy steel, gold, silver, titanium, etc.
Non-metals: Plastics, rubber, resin, carton box, etc.

Main Parts:
Fiber Laser Source:IPG, SPI, Raycus, Max, JPT (optional)
Scan Head:SINO-GALVO
Marking Software:EZCAD
Others:F-theta Lens; Computer

Superiority:
R & D:Professional engineering design and the smallest size;
Warranty and service: 100,000 hours life time with 2 years warranty and oversea after-sales. Free training.
Certificates: Customized products with CE,  EN60825 and test certificates.

Chengdu MRJ-Laser Technology Co.,Ltd is a professional high-tech enterprise specialized in laser marking, welding, visual inspection and related application control system’s development, production and sales, all products have passed EU CE certificates. Quality control strictly enforce the ISO9001 quality management system.

Core Advantages of MRJ-Laser:
·Focus on customized development of personalized and intelligent laser equipment;
·The world's smallest 30W desktop laser marking machine;
·With 8 invention patents and a number of intellectual property certificates;
·Meet the development needs of different optical, mechanical,hardware and software systems.

Q1: How can I get suitable machine?
Pls inform us the following things, then we could recommend you the suitable products:
Marking material
Marking area and marking depth(if you have such requirements)
Marking content,then we could mark a sample FYI.

Q2: This is the first time I use this kind of machine, is it easy to operate?
Firstly,it is quite easy to operate the machine.
Secondly, user manual and guide video in English will be offered, it can teach you how to operate the machine.
Thirdly,we can help you by "Teamviewer" online help software for remote control to solve your problem.
Fourthly, we can communicate by phone, email or other contact ways.

Q3: If the machine has problem in my place,what should I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".

Q4: How long is the delivery time?
For standard machines, it would be 7-10 days;
For non-standard machines and customized machines, it would be 15 to 30 days.

Q5: How's the payment?
Telegraphic Transfer (T/T)/Ali Trade Assurance Payment

Q6: Do You Arrange Shipment For The Machines?
Yes, we will arrange shipment for you.By sea,by air or express.
Of course, appointed forwarder is welcome
